PURPOSE:
Hoists are mainly divided into fixed hoists and mobile hoists. The fixed hoist is mainly used for the opening and closing of gates,designed to be powered by an electric motor and equipped with devices such as gate opening indication,load indication,

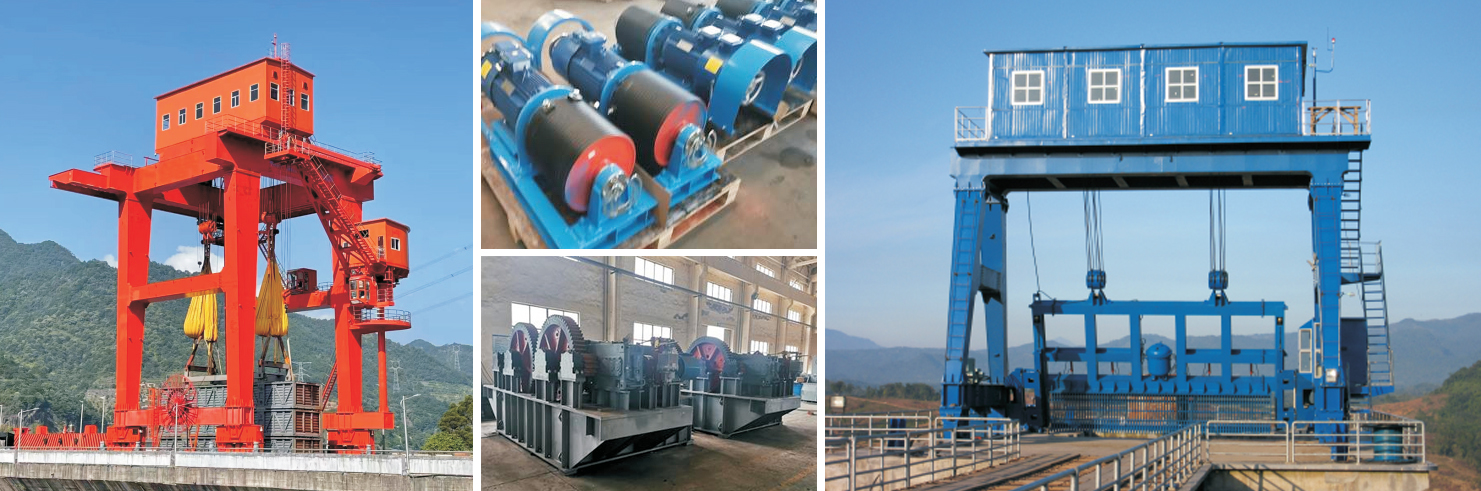

height limit protection,and load protection. Mobile hoist is a specialized crane installed on the dam of a hydropower station to open and close gates,trash racks,and lifting equipment.In addition to a few types of lifting appliances that only move left and right along the dam axis,
there are also bidirectional mobile hoists that can not only move left and right along the dam axis direction,but also move upstream and downstream.

COMPOSE:
The fixed hoist mainly consists of a frame,an electric motor,a brake,a reducer,a coupling,a drum device,a moving pulley group,a balance pulley group, a height indicator,a load indicator,and an electrical system. The gantry crane mainly consists of the crane track,lifting mechanism,
gantry,crane operating mechanism,trolley operating mechanism,rail clamp, anemometer,driver's cab,machine room,door crane power supply device,and electric traction control.
