PURPOSE:
The grid shaped disc cleaning machine is a type of circulating water system used in nuclea powe,thermal power,urbanwater supply,municipal,metallurgical,chemical,and other fields.It is used in conjunction with the upstream trash rack,which caneffectively intercept and remove small sized pollutants such as water plants and leaves in the water flow;Jellyfish,algae,fish,shrimp,and other aquatic organisms;As wellas waste from industry,agriculture,and urban life,preventing impurities fromcirculating water from entering key equipment such as exchangers and pumps at the water intake,ensuring the safe and economicoperation of the water intake project.

COMPOSE:

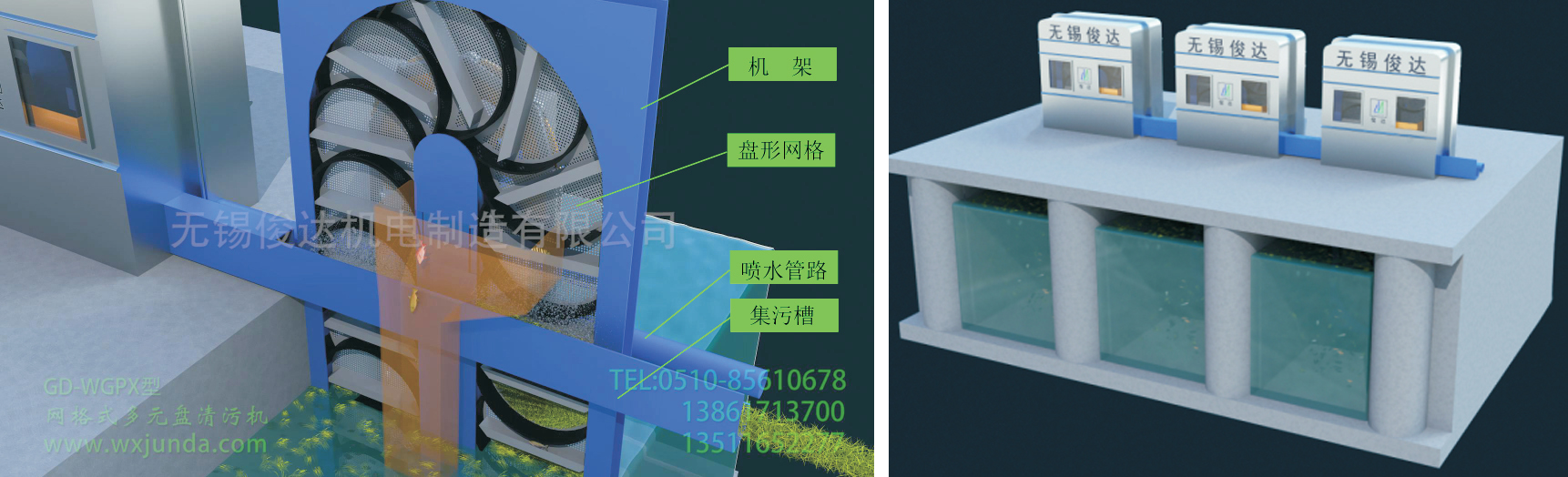

The grid shaped disc cleaning machine mainly consists of a frame,transmission system,disc grid,flushing system,sewage collection tank,mechanical safety protection system,electrical control system,etc.(to protectthe ecology,a fish guide system can be added specifically to protect fishreproduction).

OPERATING PRINCIPLE:：
The operation of the grid format multi disc cleaning machine can be automatically controlled through intelligent programs.When the driving device is running,it drives the sprocket and transmission chain,causing the disc grid to rotate inthe direction of thewater flow cross-section.When the wate flows through the mesh plate,the dirt is intercepted and lifted up along with the grid.Thedirt is flushed into the collection tank through the flushing system,which extends to the platform on the side of the orifice anddischarges the dirt to the discharge ara,thus achieving the purpose of fitering water quality.
